Card Component (Chat / Bots) Follow

The Card Component in Execution Flows allows you to display structured information visually in line with the conversational interface. Cards can be shown individually or as part of a carousel to enrich chat experiences.

Topics Covered:

• How to Configure the Card Component
• Practical Example

How to Configure the Card Component

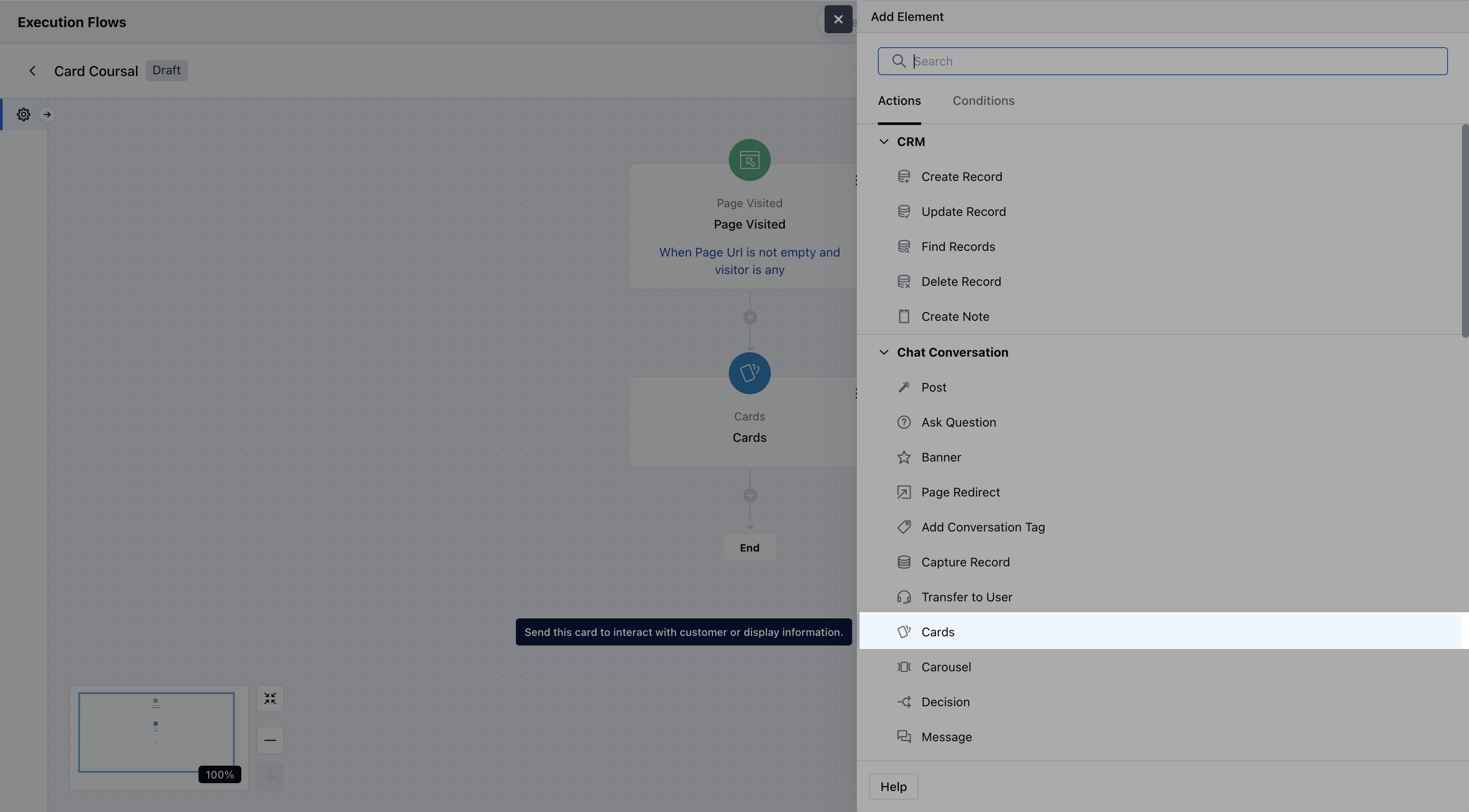

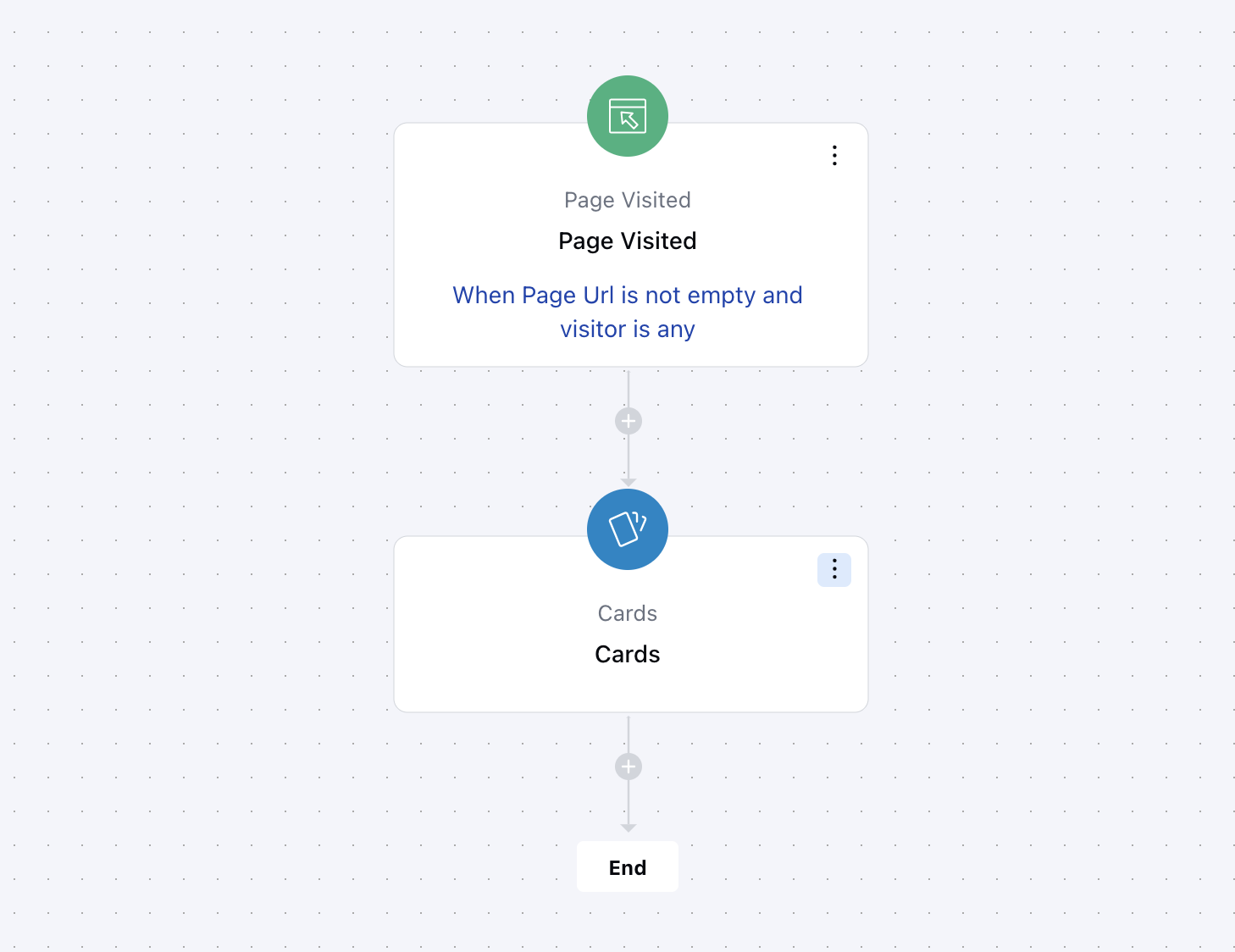

• While setting up a Smart Flow, select the Card action from the list of available actions.

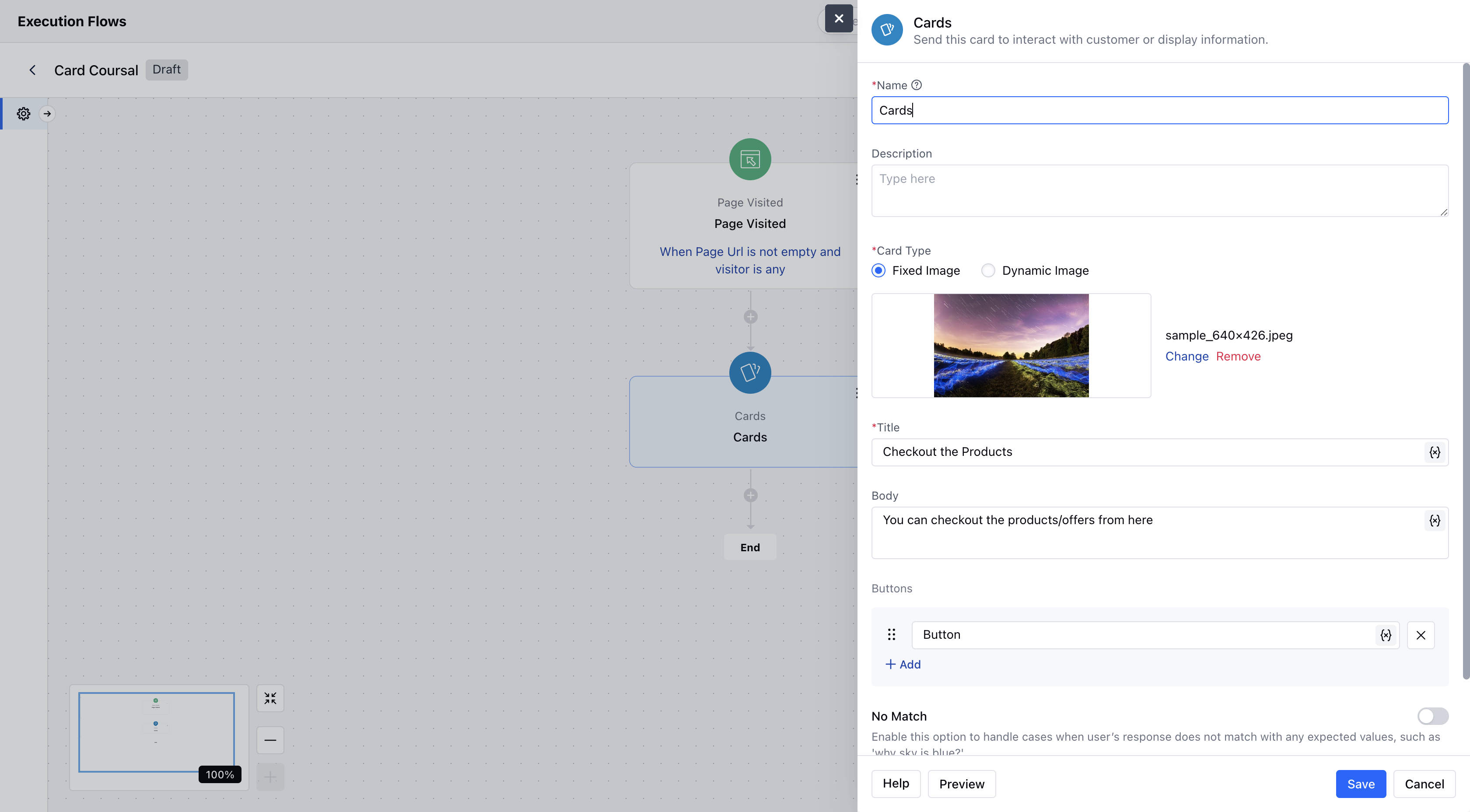

• Once selected, configure the card with the following settings:
  • Name: Assign a clear name to the card component.
  • Description: Optionally, enter an internal description to describe the purpose or use of this card in the flow.
  • Image:
    • You may upload a static image or provide a dynamic image URL (supports variables).
    • Supported formats: jpg, jpeg, png, gif.
    • If no image is provided, a blank thumbnail will be shown.
  • Title: This is the main heading on the card. This can contain text or variables (for dynamic content).
  • Body: Descriptive text shown below the title. It can include dynamic variables and supports basic formatting (bold, italic, underline, etc.).
  • Buttons: You can add up to 10 interactive buttons. Each button must have a label and can use variables.
  • No Match: You can enable this option to handle unexpected user responses.
  • No Reply: You can enable this option to handle silence or lack of user interaction.

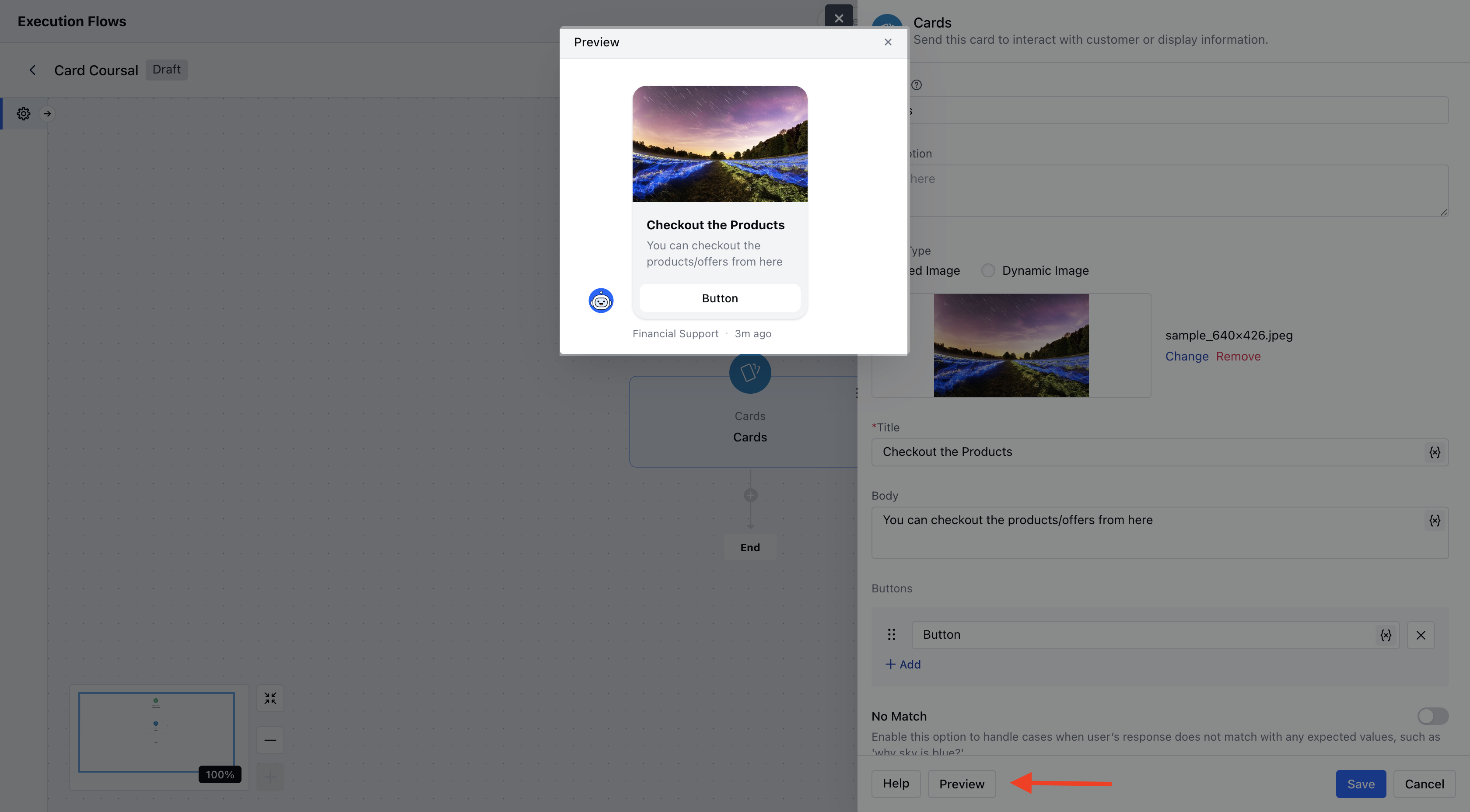

• You can also click on Preview to check how your Card Component will look.

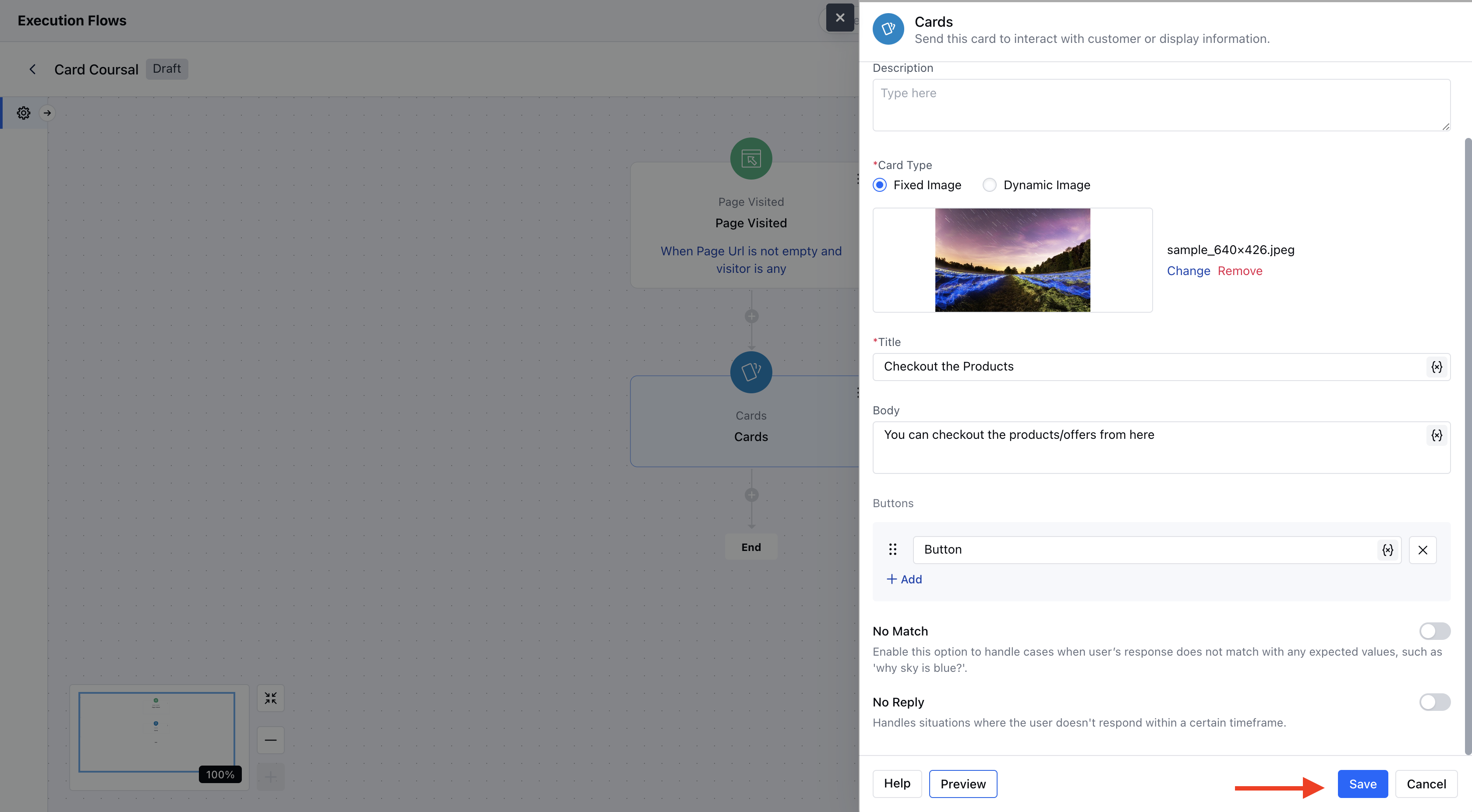

• After configuration, click Save to complete the setup.

• Output ports are available for: each button, no match (if enabled), and no reply (if enabled).

Practical Example:

Let’s say a visitor lands on your website’s Product/Services page. You can use the Cards component to display a contextual pop-up message - promoting an offer, showcasing a featured product, or guiding them to a demo or contact form This helps engage visitors in real-time, boosts conversion, and drives them toward the next step in your funnel.
